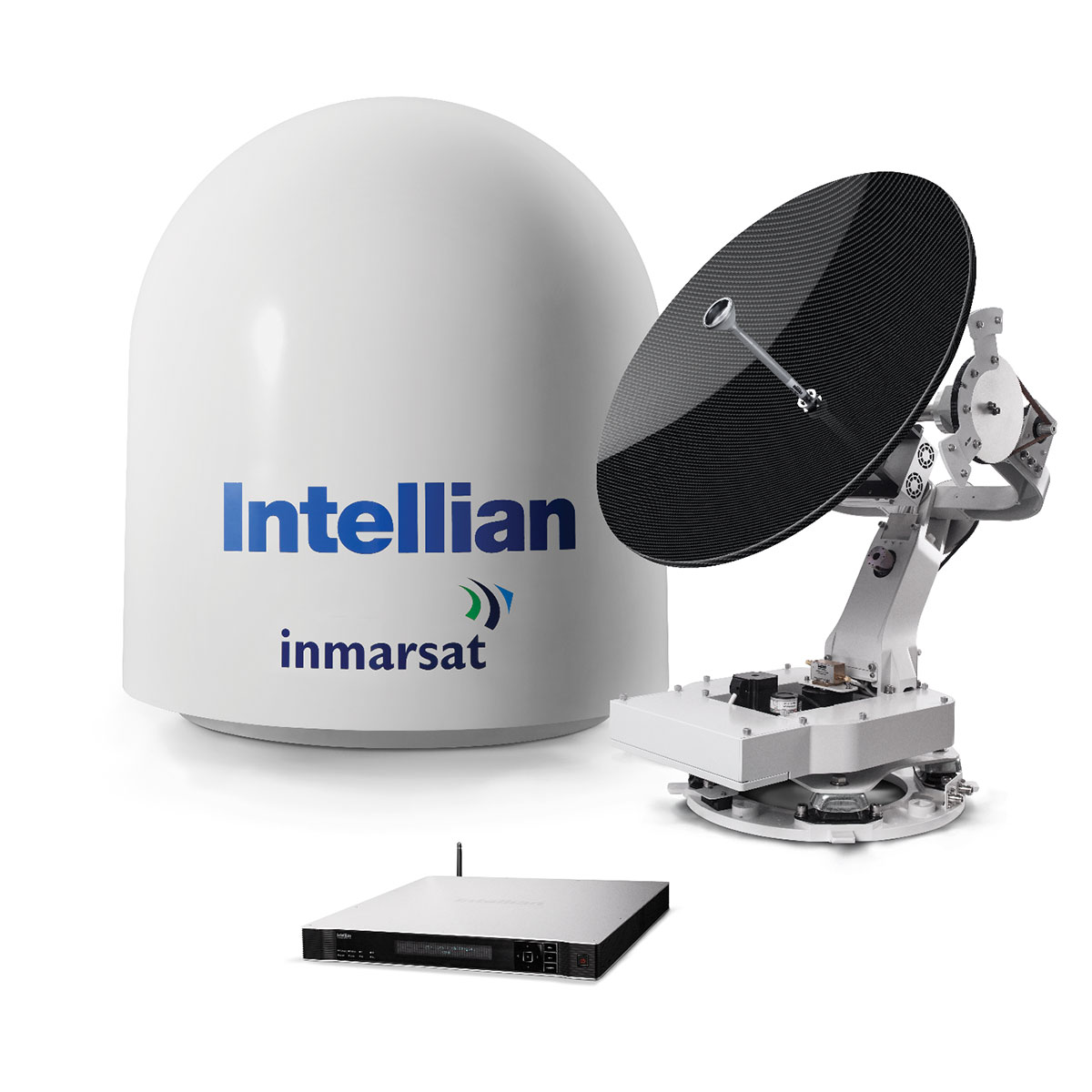

Physical
• Radome Height 103cm / 40.5"
• Radome Diameter 90cm / 35.5"
• Reflector Diameter 65cm / 25.6"
• Weight Approx. 60kg / 132lbs
Stabilized Pedestal Assembly
• Platform 3-axis : Azimuth, Elevation, Cross-level • Azimuth Range Unlimited
• Elevation Range -20° to +115°
• Cross-level Range Up to ±37°
• Stabilization Accuracy 0.2° max in presence of
specified ship motions
• Motor Brake System Elevation, Cross-Level Power • Requirement 100~240V AC, 50~60Hz, 4A
Reflector & Feed Assembly
• TX Frequency 29.00~30GHz Ka-band
• TX Gain 43.75 dBi @ 29.5GHz (with Radome)
• RX Frequency 19.2~20.2GHz Ka-band R
• X Gain 40 dBi @ 19.7GHz (with Radome)
• G/T 17 dB/K (Typ.)
• BUC 5W Ka-band BUC
• LNB Ka-band LNB (L.O. 18.25GHz)
• Polarization Circular, Tx:RHCP / Rx:LHCP
|
Below Deck Terminal
• Dimensions (WxDxH) 43.1cm x 44.1cm x 4.4cm / 17" x 17.3" x 1.7"
• Weight 4kg / 8.8lbs
• Display 2 line 40 character graphic VFD module • Ship's Gyrocompass Interface
NMEA 2000 / NMEA 0183
• Modem Integrated Global Express core module • Remote Management Yes
• Wi-Fi Operation Yes
• Management Port Yes (Ethernet/ USB/ Serial)
• Power Requirement 100~240V AC, 50~60Hz, 1
• 19" 1U rack mountable BDU with alphanumeric
display
• Aptus software, user & installation
• 103cm Ku-band reflector
• 151.4cm radome
• NJRC 8W/16W extended BUC, LNB, OMT and RF assembly
|
